What Is an Industrial Camera? Complete Technical Guide for Machine Vision Applications
Short Summary

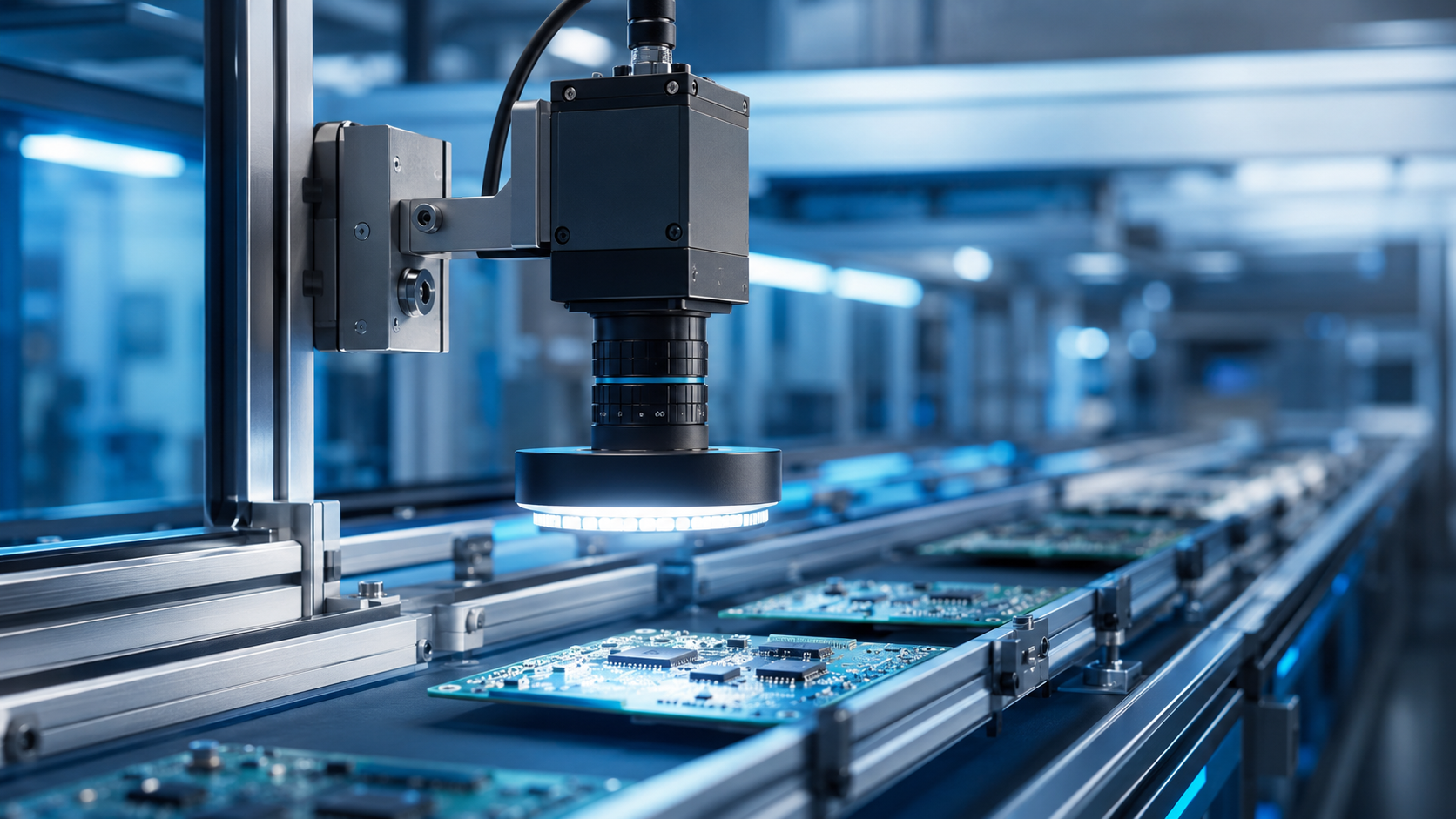

An industrial camera is a factory-grade imaging device designed to capture reliable image data under controlled machine vision conditions. Unlike consumer cameras, industrial cameras are built for triggered acquisition, fixed exposure control, repeatable image quality, low-latency transfer, software integration, and 24/7 automation environments.
In a typical system, the industrial camera works with a lens, lighting, trigger sensor, vision software, industrial PC, PLC, robot, or database. The output may be an OK/NG decision, dimensional value, barcode result, OCR text, defect location, object position, or robot coordinate.
Industrial Camera System Chain
What Is It?
An industrial camera is a digital imaging device used in automated inspection and machine vision systems. Its job is not only to take a picture, but to capture a stable, measurable, repeatable image that software can analyze with high confidence.
The camera converts light from the inspected object into digital pixel data. The image is then processed using algorithms such as edge detection, blob analysis, pattern matching, barcode reading, OCR, deep learning classification, segmentation, defect detection, or dimensional measurement.
Working Principle
The working principle of an industrial camera can be understood in seven stages:
| Stage | Technical Function | Why It Matters |
|---|---|---|
| 1. Illumination | Controlled light highlights the target feature. | Good lighting improves contrast and reduces false rejection. |
| 2. Optics | Lens projects the object onto the camera sensor. | Lens quality controls sharpness, distortion, and measurement accuracy. |
| 3. Exposure | Sensor collects photons for a defined time. | Exposure affects brightness, blur, and repeatability. |
| 4. Signal Conversion | Photons become electrical charge, then digital values. | Noise, bit depth, and sensor quality affect inspection reliability. |
| 5. Image Transfer | Image data moves through GigE, USB3, Camera Link, or CoaXPress. | Bandwidth and latency decide whether real-time inspection is possible. |
| 6. Processing | Vision software analyzes the image. | Algorithm quality determines detection accuracy. |
| 7. Output | Result is sent to PLC, HMI, robot, database, or rejector. | Fast and correct output keeps the automation line synchronized. |
Types / Variants
Area Scan Camera
Captures a complete 2D frame in one exposure. Best for discrete parts, labels, components, packaging, assemblies, and robot guidance.
Line Scan Camera
Captures one line at a time while the material moves. Best for paper, film, textile, web, metal sheet, and continuous surface inspection.
Smart Camera
Combines camera, processor, and basic vision tools inside one device. Best for compact inspection and simple OK/NG decisions.
3D Camera
Captures depth, height, or surface profile. Best for volume, shape, robotic bin picking, deformation, and height inspection.
Key Specifications
1. Resolution
Resolution is the number of pixels available for inspection. Higher resolution is useful when the part is large, the smallest defect is very small, or the application requires accurate measurement. However, higher resolution also increases image size, processing load, bandwidth requirement, and sometimes exposure demand.
2. Pixel Size
Pixel size affects light sensitivity, signal strength, dynamic range, and noise behavior. Larger pixels generally collect more light and perform better in low-light or high-speed inspection. Smaller pixels help achieve higher resolution in compact sensor sizes but may require better lighting and optics.
3. Sensor Size
Sensor size affects field of view, lens compatibility, image circle requirement, and optical performance. A larger sensor can capture a wider field of view but needs a suitable lens that supports the sensor format without vignetting.
4. Frame Rate
Frame rate defines how many images the camera can capture per second. It must be selected based on conveyor speed, product spacing, cycle time, exposure time, image size, and interface bandwidth.
5. Shutter Type
Global Shutter
All pixels expose at the same time. Recommended for moving products, conveyor inspection, robotic vision, and high-speed image capture.
Rolling Shutter
Rows expose sequentially. Suitable for static or slow applications, but fast motion can create geometric distortion.
6. Dynamic Range, Noise, and SNR
Dynamic range indicates how well the camera can capture bright and dark regions in the same image. Signal-to-noise ratio affects image clarity and algorithm stability. For precision inspection, compare cameras using standardized performance data where available, rather than relying only on megapixel and frame-rate values.
7. Interface and Bandwidth
The camera interface determines image transfer speed, cable length, installation cost, latency, and multi-camera scalability.
| Interface | Best For | Practical Notes |
|---|---|---|
| GigE Vision | Long cable length, scalable Ethernet-based systems | Good for industrial PC-based systems and multi-camera layouts. |
| USB3 Vision | High speed, short cable distance, compact systems | Simple integration but cable length and port stability must be checked. |
| Camera Link | Deterministic high-performance imaging | Often used where stable, low-latency acquisition is required. |
| CoaXPress | Very high bandwidth and demanding machine vision | Suitable for high-resolution, high-speed inspection with frame grabbers. |
Applications
Quality Inspection
Detect scratches, dents, burrs, cracks, stains, missing parts, wrong assembly, contamination, and surface defects.
Dimensional Measurement
Measure length, width, diameter, angle, gap, edge distance, alignment, circularity, and position.
OCR / OCV
Read and verify printed batch numbers, date codes, serial numbers, lot numbers, and labels.
Barcode & Traceability
Read 1D barcodes, QR codes, and Data Matrix codes for product tracking and serialization.
Robotic Guidance
Identify position, orientation, pick points, and alignment coordinates for robots and cobots.
Web Inspection
Inspect continuous materials such as paper, film, foil, textile, rubber, metal sheets, and printed rolls.
Selection Guide
Selecting an industrial camera should be done from the application requirement backwards. Start with the object, defect size, speed, accuracy, environment, and integration needs. Then select camera, lens, lighting, interface, trigger, and software.
| Question | Why It Matters | Camera Decision Impact |
|---|---|---|
| What is the field of view? | Defines how much area must be captured. | Resolution, sensor size, lens focal length. |
| What is the smallest defect or feature? | Defines required object-space pixel size. | Megapixel, lens, lighting, algorithm margin. |
| Is the object moving? | Motion causes blur and distortion. | Global shutter, exposure time, strobe light. |
| What is the production speed? | Defines required frame rate and processing time. | Frame rate, bandwidth, CPU/GPU performance. |
| What is the inspection type? | Different inspections need different imaging strategy. | Mono/color/3D, lens, lighting, software module. |
| How will results be used? | Machine action needs synchronized output. | PLC I/O, Ethernet protocol, SDK, HMI, database. |
Common Mistakes
A high-megapixel camera is not automatically better. If lighting, lens, exposure, shutter, bandwidth, or mounting is wrong, inspection can still fail.
Poor lighting is one of the most common reasons for unstable inspection. Lighting should be selected along with the camera and lens, not after failure.
Rolling shutter can distort moving parts. For conveyors and robotic motion, global shutter is normally safer.
Large images at high frame rates can overload the camera interface, NIC, USB controller, frame grabber, or CPU.
Troubleshooting
| Problem | Likely Cause | Recommended Action |
|---|---|---|
| Camera not detected | IP conflict, driver issue, cable, power, occupied device | Check power, interface cable, IP range, SDK/driver, and whether another software is using the camera. |
| Image is dark | Low exposure, low gain, weak light, wrong aperture | Increase lighting first, then adjust aperture, exposure, and gain carefully. |
| Image is blurred | Motion blur, defocus, vibration, long exposure | Use shorter exposure, brighter strobe light, better mounting, and refocus the lens. |
| Inspection unstable | Lighting variation, part position variation, weak contrast | Improve fixture, lighting, ROI, trigger timing, and algorithm tolerance. |
| Frames are dropped | Bandwidth overload, poor cable, NIC/USB issue, processing delay | Reduce frame rate/resolution, enable ROI, check cable, use dedicated NIC or frame grabber. |
FAQs
What is the difference between an industrial camera and a normal camera?
A normal camera is designed for photography or video. An industrial camera is designed for machine vision, software control, triggering, fixed exposure, repeatability, interface stability, and factory automation.
Which is better: area scan or line scan?
Area scan is better for discrete objects captured in one frame. Line scan is better for continuous moving materials such as paper, film, textile, foil, and web inspection.
Is color camera always better than monochrome?
No. Monochrome cameras often provide better sensitivity, contrast, and resolution efficiency for measurement and defect inspection. Color cameras are preferred when color itself is part of the inspection requirement.
Why is lighting so important?
Vision software depends on image contrast. Correct lighting makes the target feature visible and repeatable. Poor lighting increases false rejection and missed defects.
Can industrial cameras connect with PLCs?
Yes. Industrial camera systems commonly connect with PLCs using digital I/O, Ethernet-based communication, serial communication, Modbus, EtherNet/IP, TCP/IP, or vision software communication tools.
