Area Scan vs Line Scan Cameras: Which One Should You Choose?

Area scan and line scan cameras are two major industrial camera technologies used in machine vision. The correct choice depends on object movement, inspection area, speed, resolution, lighting, and system architecture.

```
Area Scan
Full 2D image in one shot
Line Scan
Image built line-by-line
Selection Basis
Motion, size, speed, accuracy

```

Short Summary

An area scan camera captures a complete rectangular image in one exposure, making it suitable for discrete parts, labels, assemblies, OCR, barcode reading, dimensional inspection, and robot guidance. A line scan camera captures one line of pixels at a time while the object moves, making it ideal for continuous materials such as paper, film, foil, textile, metal sheets, printed webs, and cylindrical or very long surfaces.

Quick Decision Guide

Application ConditionRecommended CameraReason
Object fits fully inside one imageArea ScanCaptures full 2D image instantly.
Material is continuous and movingLine ScanBuilds image continuously as material passes.
Inspection is on labels, parts, assemblies, or packagingArea ScanSimple setup and complete object view.
Inspection is on paper, film, textile, foil, or metal stripLine ScanBest for long web materials and continuous surfaces.
Machine requires simpler setup and lower integration complexityArea ScanEasier lighting, triggering, focusing, and software configuration.
Very long object must be inspected at high resolutionLine ScanProvides high resolution across width and unlimited image length based on motion.

What Is an Area Scan Camera?

An area scan camera captures a complete 2D image frame at one time. The sensor contains a rectangular pixel array, such as width × height. When the camera is triggered, all required image data is captured in a single frame.

Best For

  • Part inspection
  • Assembly verification
  • Barcode and QR code reading
  • OCR and OCV inspection
  • Dimensional measurement
  • Robot pick-and-place guidance

Main Advantage

Area scan cameras are easier to deploy because the software receives a complete image of the object immediately. They are the preferred option for most standard machine vision applications where the full object can fit inside the field of view.

What Is a Line Scan Camera?

A line scan camera captures one narrow row of pixels at a time. The object or material moves past the camera, and the system builds a complete 2D image by combining many captured lines. Line scan cameras require controlled motion, stable speed, proper lighting, and usually encoder-based synchronization for best results.

Best For

  • Paper inspection
  • Film and foil inspection
  • Textile inspection
  • Printing inspection
  • Metal sheet inspection
  • Continuous web inspection

Main Advantage

Line scan cameras are excellent for long, fast-moving, or continuous surfaces. They can generate high-resolution images of materials that are too long to fit inside one area scan camera frame.

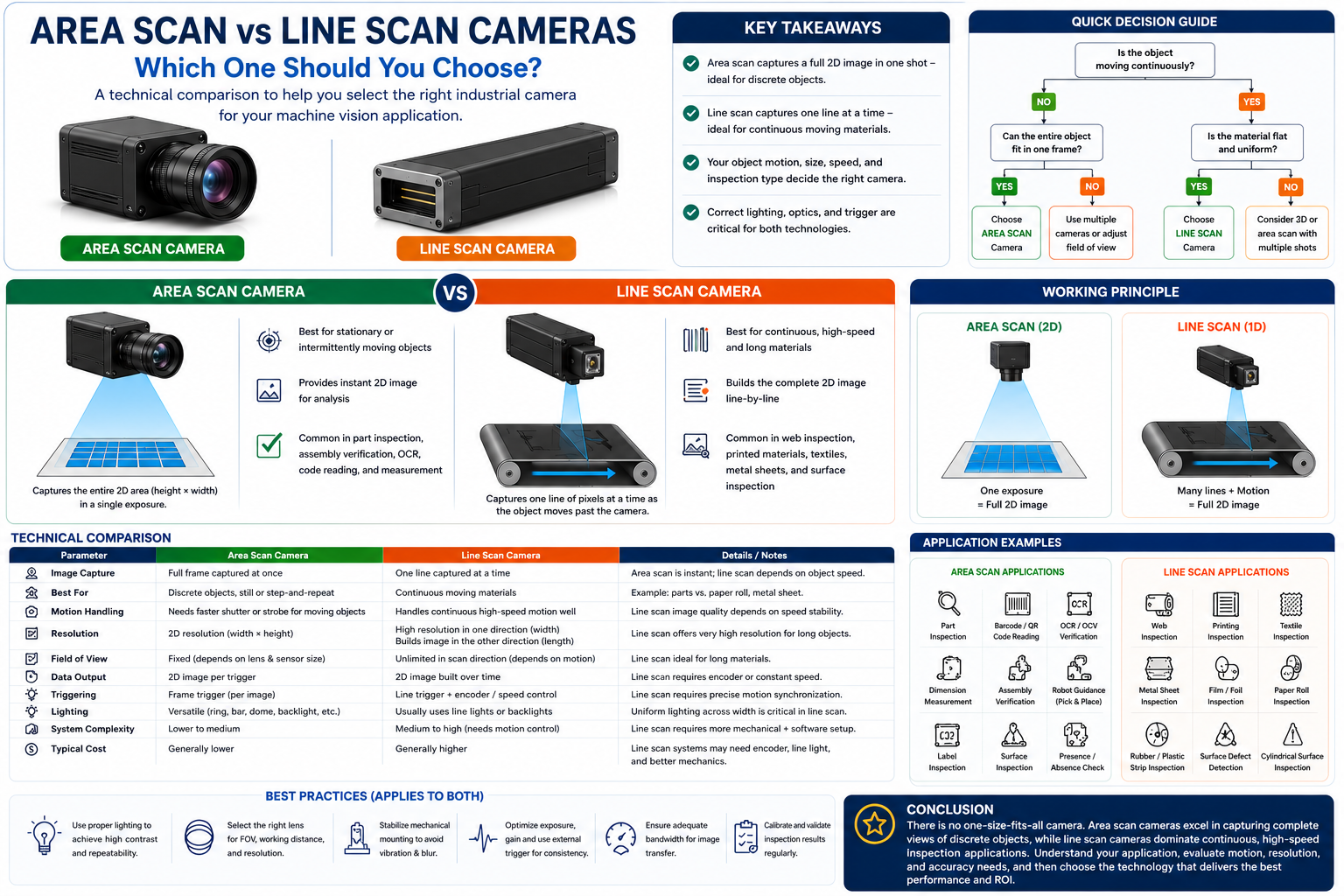

Visual Working Difference

AREA SCAN CAMERA

Captures full image area in one exposure.

Best when the object fits inside the camera field of view.

```
LINE SCAN CAMERA

Captures one line at a time as the material moves.

Best for continuous motion and long surfaces.

```

Deep Technical Comparison

ParameterArea Scan CameraLine Scan CameraSelection Note
Image FormationFull 2D frame captured at once.2D image built from many 1D lines.Area scan is simpler; line scan is motion-dependent.
Object MotionSuitable for static, indexed, or intermittently moving parts.Suitable for continuously moving materials.Line scan requires stable motion or encoder feedback.
ResolutionDefined by sensor width × height.Width defined by line pixels; length defined by movement and line count.Line scan is strong for high-resolution long objects.
Field of ViewFixed rectangular FOV.Width is fixed; length can be extended by motion.Line scan avoids extremely large area scan sensors for long products.
LightingRing, bar, dome, backlight, coaxial, or area light.Usually requires strong line light or uniform linear illumination.Line scan lighting must be very uniform across width.
TriggeringFrame trigger per object or software trigger.Line trigger, encoder trigger, or speed-synchronized acquisition.Line scan requires better synchronization control.
System ComplexityLower to medium.Medium to high.Line scan needs mechanical, lighting, and motion tuning.
Typical CostUsually lower.Usually higher.Line scan may need encoder, line light, better mechanics, and frame grabber depending on requirement.

When to Choose Area Scan Camera

Choose Area Scan when:

  • The object can fit inside one image frame.
  • The part is stationary, indexed, or moving intermittently.
  • The inspection requires simpler setup and faster deployment.
  • The application is barcode, QR code, OCR, label inspection, assembly check, or dimensional inspection.
  • The machine requires lower system complexity and easier maintenance.
  • The inspection can be handled with normal 2D imaging and standard lighting.

When to Choose Line Scan Camera

Choose Line Scan when:

  • The material is continuous and moving.
  • The object is too long to capture in one area scan image.
  • The inspection surface is flat, web-based, cylindrical, or roll-to-roll.
  • The application requires high-resolution inspection across a large length.
  • The machine has stable motion or encoder feedback.
  • The application is paper, textile, film, foil, metal sheet, printing, or surface defect inspection.

Application Examples

Area Scan Applications

  • Checking whether a component is present or missing
  • Reading QR codes on product labels
  • OCR verification on batch number or date code
  • Measuring hole diameter or part width
  • Checking assembly orientation
  • Guiding a robot to pick a part
```

Line Scan Applications

  • Detecting defects in paper rolls
  • Inspecting scratches on metal sheets
  • Checking printing defects on packaging web
  • Inspecting textile weave defects
  • Detecting pinholes in film or foil
  • Inspecting continuous rubber or plastic strips
```

Common Mistakes

Mistake 1: Using area scan for very long continuous material.
This can require very large images, complex stitching, or multiple cameras. A line scan camera may provide cleaner and more scalable inspection.
Mistake 2: Selecting line scan without stable motion control.
Line scan image quality depends on synchronized movement. Unstable speed can stretch, compress, or distort the image.
Mistake 3: Ignoring lighting uniformity.
Line scan systems are highly sensitive to uneven illumination across the scan width.
Mistake 4: Comparing cameras only by megapixel.
Camera selection must include speed, exposure, interface bandwidth, lens, lighting, trigger, and software processing requirements.

Troubleshooting Guide

ProblemLikely CauseRecommended Action
Area scan image is blurredLong exposure, fast object movement, poor focusUse shorter exposure, stronger lighting, strobe, and correct focus.
Line scan image is stretchedLine rate does not match material speedAdjust encoder settings, line trigger, or acquisition rate.
Line scan image has dark bandsUneven line light or unstable illuminationUse uniform line light, stable power supply, and shading correction if needed.
Inspection result changes frequentlyPosition variation, lighting change, speed variationImprove fixture, lighting, trigger timing, calibration, and ROI setup.
Frame or line data is missingBandwidth overload or processing bottleneckCheck camera interface, cable, NIC/frame grabber, PC load, and image size.

Selection Formula: Think in Pixels per Feature

For both area scan and line scan systems, the camera should be selected based on the smallest feature that must be detected or measured. In practical machine vision, the smallest defect or edge feature should cover enough pixels for reliable algorithm detection.

Engineering rule: Do not select the camera only by megapixel. Select it based on field of view, smallest defect size, required measurement tolerance, lens quality, lighting contrast, motion speed, exposure time, and processing bandwidth.

Best Practices

Lighting First

Stable inspection starts with controlled, repeatable, high-contrast lighting.

Correct Lens

Match lens focal length, working distance, aperture, distortion, and sensor size.

Stable Trigger

Use correct sensor position, trigger delay, encoder, and exposure timing.

Bandwidth Check

Confirm image size, frame rate, line rate, interface, CPU/GPU, and storage load.

FAQs

Which camera is better: area scan or line scan?

Neither is universally better. Area scan is better for complete images of discrete objects. Line scan is better for continuous, long, or moving materials.

Can line scan inspect stationary objects?

A line scan system needs relative motion between the camera and the object. The object must move, or the camera/scan mechanism must move.

Is area scan easier to use?

Yes. Area scan systems are usually easier to set up because they capture a full image at once and require simpler triggering and lighting.

Why does line scan need an encoder?

An encoder helps synchronize line acquisition with material movement. This prevents stretched or compressed images when speed changes.

Can multiple area scan cameras replace a line scan camera?

Sometimes yes, but it may require image stitching, multiple triggers, more calibration, and higher system complexity. For continuous web inspection, line scan is often cleaner.
